The Fenix ARE-A2 universal dual-channel charger is designed for 3.7V / 3.6V Li-ion and NiMH / NiCd rechargeable batteries. Each charging slot is monitored independently, so it is possible to charge batteries of different sizes, capacities and even different chemistries at the same time (Li-ion and NiMH / NiCd can be charged simultaneously). It automatically recognises the inserted battery type and selects the optimal charging algorithm.

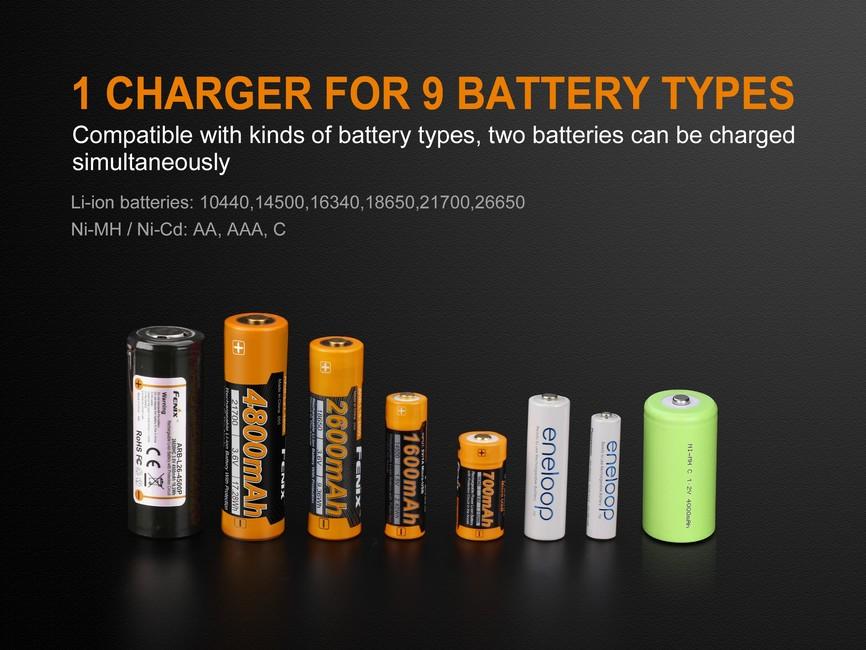

The charger can charge Li-ion batteries of the following types: 26650, 22650, 25500, 21700, 20700, 18650, 17670, 18700, 14650, 18500, 18490, 18350, 17500, 14500, 16340, RCR123, 10440 and NiMH batteries of sizes AAA, AA, C. The charger can also charge Li-ion batteries 21700 and 20700 with protection electronics.

Fenix ARE-A2 charger specifications

• Two independently monitored charging channels, CC / CV charging algorithm.
• Charging current 1000 mA for all charging slots.
• The charger can charge, for example, the following Li-ion batteries: 26650, 18650 Li-ion, 14500, 16340, RCR123. It can also charge all standard and mini standard batteries from our range.
• Two independent charging channels, automatic recognition of the battery type being charged.
• Protection against short circuit and reverse battery insertion.
• LCD display shows charging progress, charging time, charging current, voltage and type of battery being charged.
• Efficient heat dissipation from the charging electronics.
• Dimensions 149 x 75 x 40.5 millimetres.
• Charger weight 178 grammes.
• Supported charger input voltage 100 - 240 VAC, 12 - 24 VDC.
• The package includes the charger and mains cable.
• A car adapter ARW10 can be purchased separately for the charger.
• Use of the Fenix ARE-A2 charger

Plug the charger into a socket. The display will light up. After inserting the batteries, the battery type and charging status will be displayed on the display. The button at each charging channel is used to switch the displayed information in the following order: voltage - charging current - charging time. By holding the button down for a long time, you can turn off the display and by pressing it briefly again you can turn it back on and the current battery voltage will be displayed again.

Warning

Do not charge Li-ion cells that have undergone excessive discharge (below 2V).
Do not insert batteries into the charger in reverse (with opposite polarity).
When using the charger, observe safety principles.
We recommend using quality protected Li-ion batteries.
It is not designed for charging LiFePO4 batteries.

Warranty

Statutory two-year warranty.

We offer a 30-day period for returning or exchanging goods if, for any reason, you are not satisfied with your order.

For more information, please see our Return Policy here.
