Compact universal USB charger Fenix ARE-D1 for one Li-ion or NiMH / NiCd rechargeable battery. Charging current up to 2000 mA (for NiMH / NiCd the maximum charging current is 1000 mA), depending on the capabilities of the USB power source to which you will connect the charger (computer, mains USB power source, mobile phone charger with micro USB).

When a charged battery is inserted, it also functions as a backup power source (power bank) for charging USB devices (mobile phones, MP3 players and others). Thanks to its compact dimensions, the charger is particularly suitable for travel. It automatically recognises the inserted battery type and selects the optimal charging algorithm. The charger is equipped with an LCD display that shows the current voltage of the batteries, the type of batteries being charged and other information.

The charger can charge Li-ion batteries of the following types: 26650, 22650, 25500, 21700, 18650, 17670, 18700, 14650, 18500, 18490, 18350, 17500, 14500, 16340, RCR123 and NiMH batteries of sizes AAA, AA, C. The charger can also charge Li-ion batteries 21700 and 20700 with protection electronics.

USB Li-ion charger specifications

• Single charging channel.
• Charging current up to 2000 mA (depending on the capabilities of the USB power source).
• You can manually select the charging current (500 mA, 1000 mA, 2000 mA).
• The charger can charge, for example, these Li-ion batteries: 26650, 18650 Li-ion, 14500, 16340, RCR123.
• You can also charge AA and AAA batteries.
• Protection against reverse battery insertion, short circuit and overcharging.
• LCD display shows charging progress, charging time, charging current and voltage.
• Dimensions: 30 x 120 x 38 millimetres.
• Weight: 61 grams

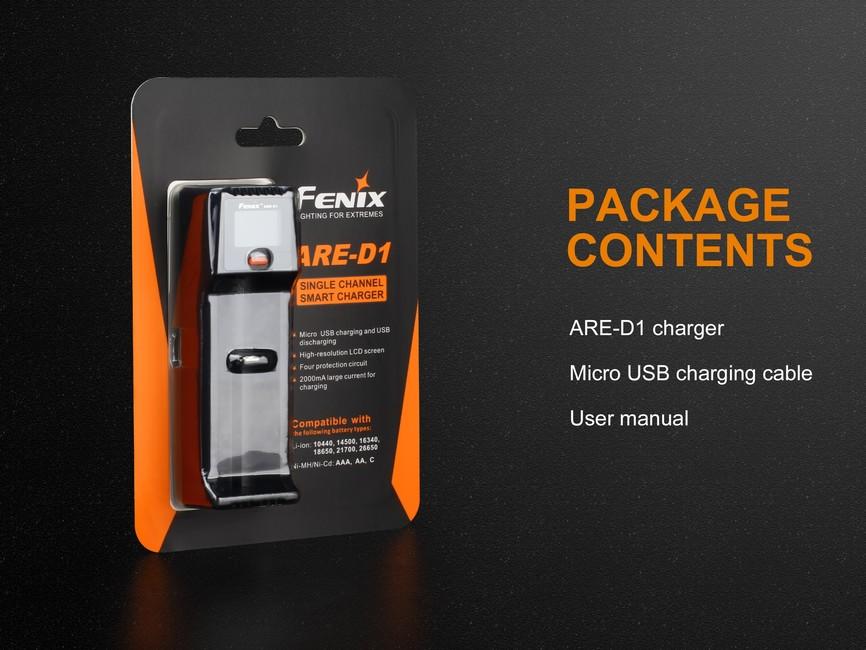

• The package includes the charger and USB cable.

Charging batteries
Connect the charger to USB. The display will light up. When a battery is inserted, the display shows the battery type and charging status. The button is used to switch the charging current in the following order: 1000 mA - 500 mA - 2000 mA. The charging current can be selected during the first 8 seconds of charging (the battery icon on the display flashes). When a charged battery is inserted, pressing and holding the button activates the power bank function (the display shows "USB 5V").

Warning
Do not charge Li-ion cells that have undergone excessive discharge (below 2V). When using the charger, observe safety guidelines. We recommend using quality protected Li-ion batteries. It is not intended for charging LiFePO4 batteries.

Warranty
Statutory two-year warranty.
