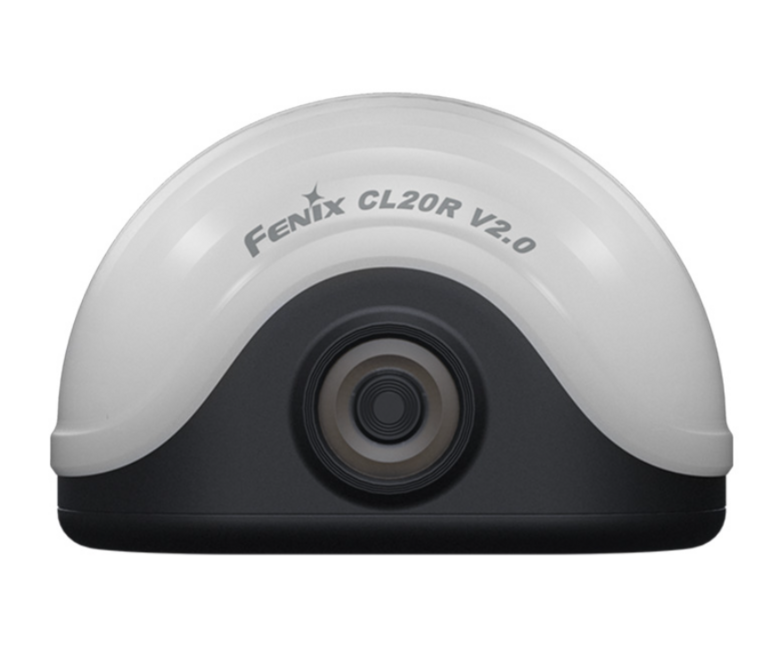

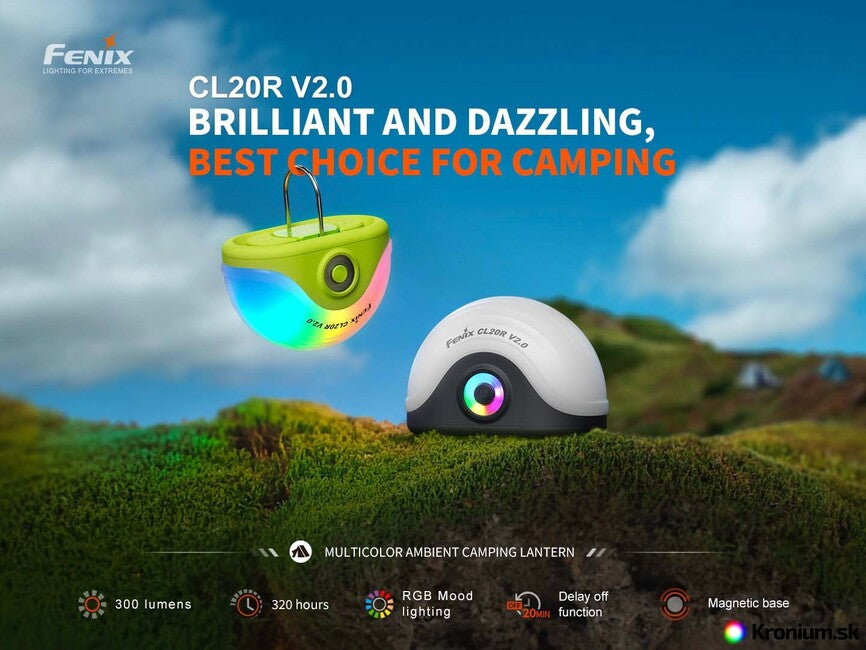

Looking for reliable and versatile lighting for camping, tent camping, fishing or evenings on the terrace? You have found it. Fenix CL20R V2.0 is a compact and powerful rechargeable camping lantern that you can use to light a room, tent or work table. Twenty-seven high-brightness LEDs hidden under a hemispherical diffuser provide a light output of up to 300 lumens (ANSI) with a pleasant neutral white light tone (3700 - 4200 K). The advantage of this tone is more natural and higher-contrast colour rendering, which does not tire the eyes. To create atmosphere, the lantern is also equipped with twenty-four RGB LEDs for coloured lighting. Power is supplied by a replaceable Li-ion rechargeable battery Fenix ARB-LP1900 with a capacity of 1900 mAh, which charges conveniently via a modern USB-C connector. In an emergency it can be replaced by three standard AAA batteries. Thanks to its durable construction with IP65 rating, it will not be afraid of rain. The bottom is fitted with a flip-out suspension loop and a strong neodymium magnet, so you can easily attach it to tent structure, a car bonnet or any iron surface. With a weight of only 122 grams, it is an ideal outdoor light for travel.

All parameters of the light (light output, battery runtime, water resistance, beam distance and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

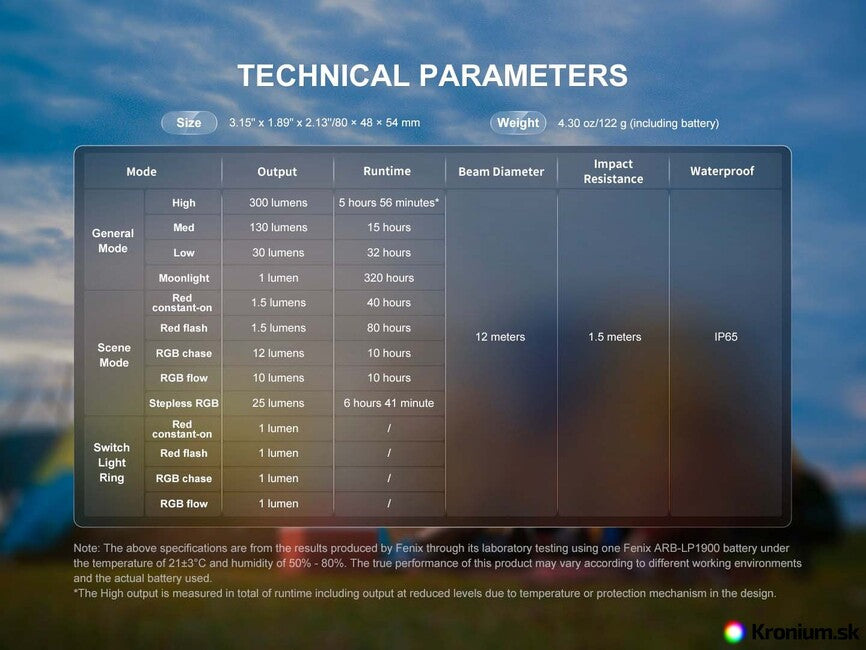

Specifications of the Fenix CL20R V2.0 lantern

• The light source consists of twenty-seven high-brightness LED 2835 with neutral light tone and twenty-four RGB LED 2020, all with a lifespan of 50,000 hours.
• Four power modes: 300 lumens (5.9 hours) -> 130 lumens (15 hours) -> 30 lumens (32 hours) -> 1 lumen (320 hours).

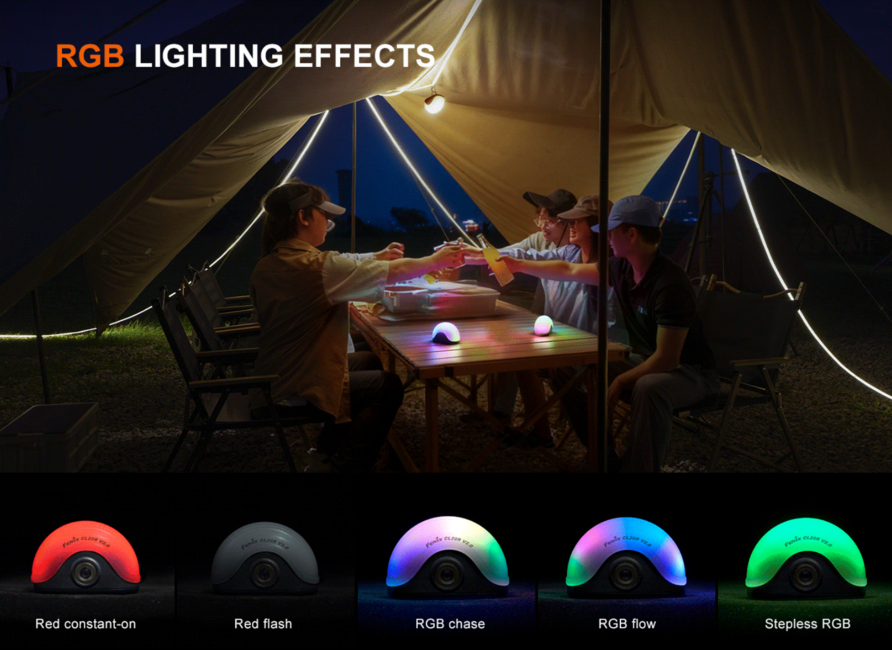

• Five red and RGB light modes: RGB with smooth colour selection 25 lumens (6.7 hours) -> RGB cycling 12 lumens (10 hours) -> RGB fading 10 lumens (10 hours) -> red light 1.5 lumens (40 hours) -> red flashing 1.5 lumens (80 hours).
• Four light ring modes around the switch: red 1 lumen (/) – red flashing 1 lumen (/) – RGB cycling 1 lumen (/) – RGB fading 1 lumen (/).
• Electronics with extended runtime function.

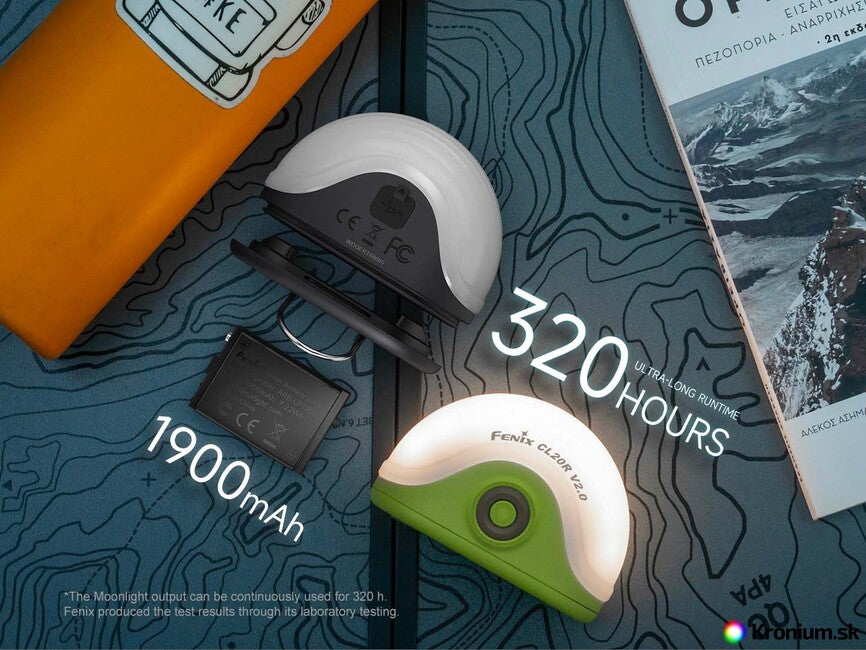

• Powered by the included Li-ion rechargeable battery with a capacity of 1900 mAh, it can be powered in an emergency by 3x AAA batteries.
• Charging via USB-C connector.

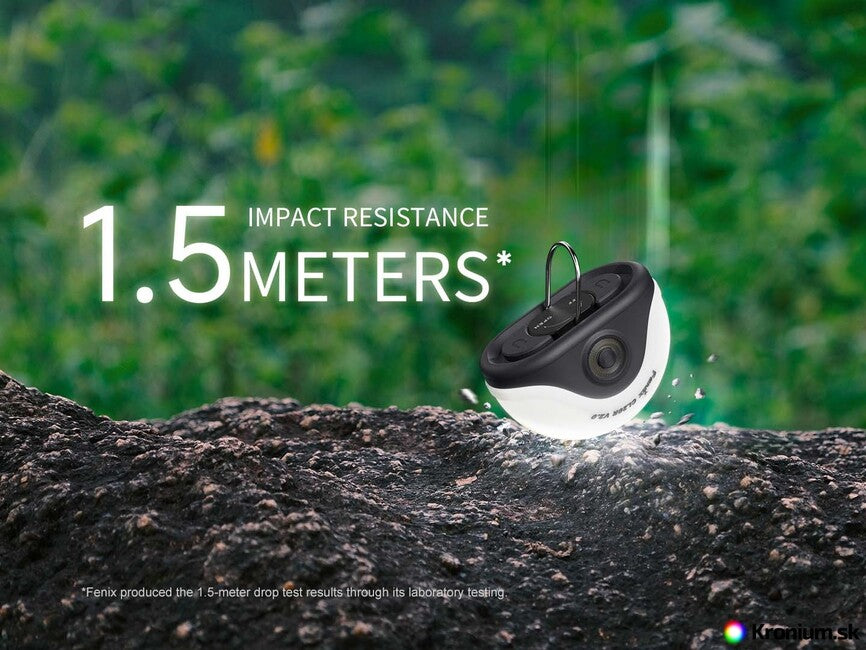

• Made from durable plastic, the lantern is impact-resistant to drops from a height of 1.5 metres.

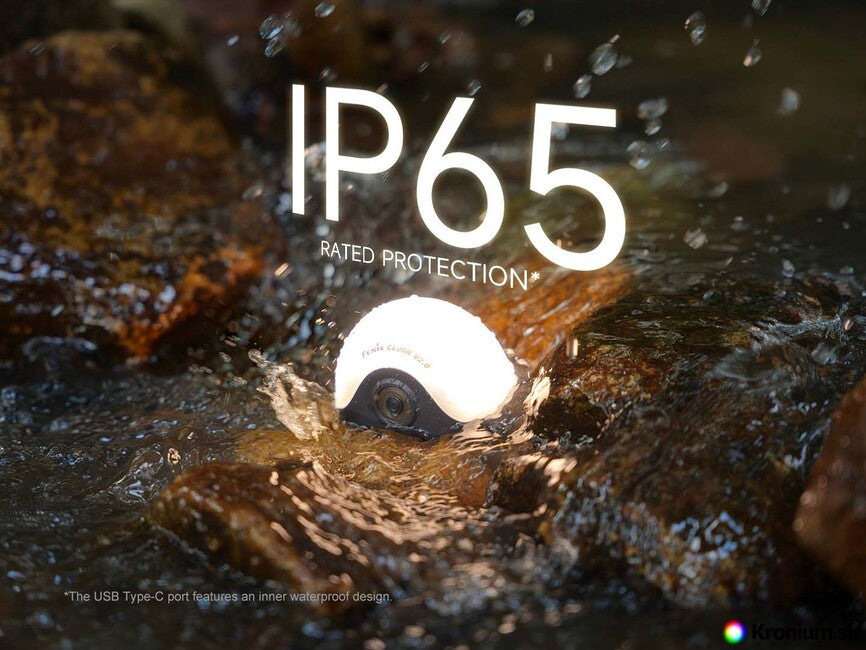

• Water-resistant and dust-proof according to IP65 standard (withstands heavy rain and splashing water).
• The diffuser creates a wide, even light cone with a diameter of 12 metres.
• Bottom fitted with a suspension loop and neodymium magnet for attachment to any iron surface.

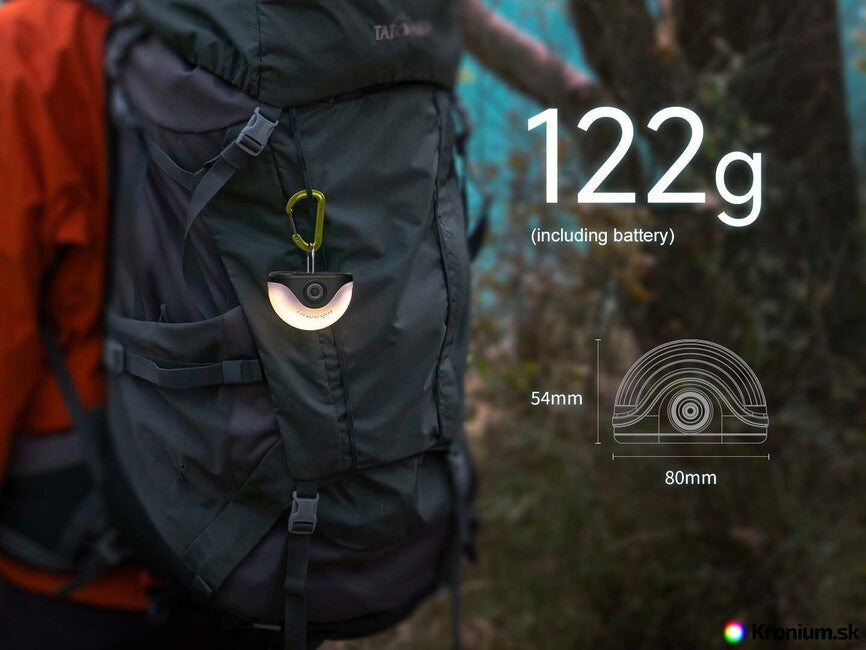

• Dimensions 8 cm x 4.8 cm x 5.4 cm.
• Weight 122 grams (including rechargeable battery).

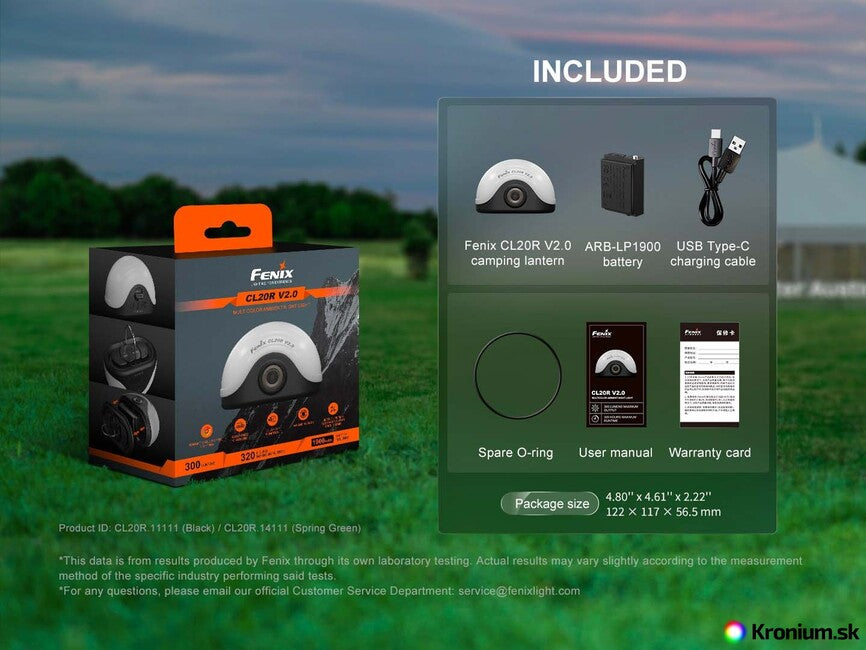

• The lantern comes with a USB-C charging cable, Fenix ARB-LP1900 rechargeable battery and a spare O-ring.
• You can purchase a replacement rechargeable battery, USB mains adapter and USB car adapter separately.

Use of the Fenix CL20R V2.0

The rechargeable battery may have an insulating cover from the factory. Before first use, remove it.

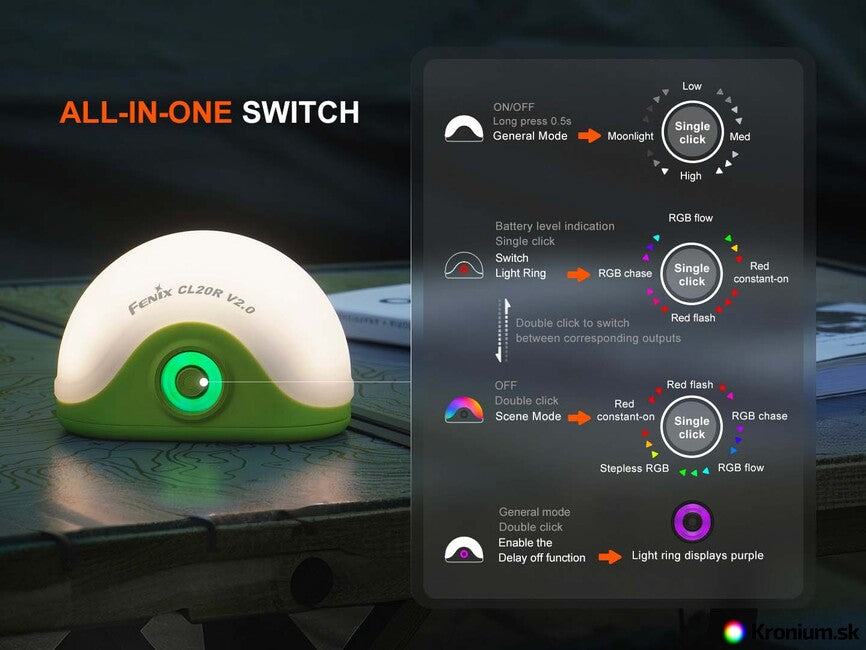

Switching on/off and switching power modes - The lantern switches on to white light by holding the switch for 0.5 seconds; to switch on colour modes, press the switch twice quickly. To switch on the light ring, press the switch once and then again within 3 seconds. Individual lighting modes of the selected lighting method are switched by pressing the switch. The lantern switches off by holding the switch for 0.5 seconds.

Switching lighting modes - Delayed shutdown function: If the lantern is switched on to white light modes, press the switch twice quickly to activate the delayed shutdown function. The light ring of the switch will light up purple and the lantern will switch off automatically after 20 minutes. If the lantern is switched on to colour lighting modes or has an active colour ring, you can switch between these two lighting modes by double-pressing the switch. If the smooth colour change mode is active, double-pressing the switch will pause the current colour or resume the smooth colour change.

Memory of the last set mode - The light has memory and will always switch on in the last set white light mode, with the exception of the highest mode. Instead, it will switch on to the second highest mode.

Battery replacement - Pull the suspension loop on the bottom of the lantern and unscrew it clockwise to open the battery cover. Insert the battery according to the marked polarity and then screw the battery cover back on.

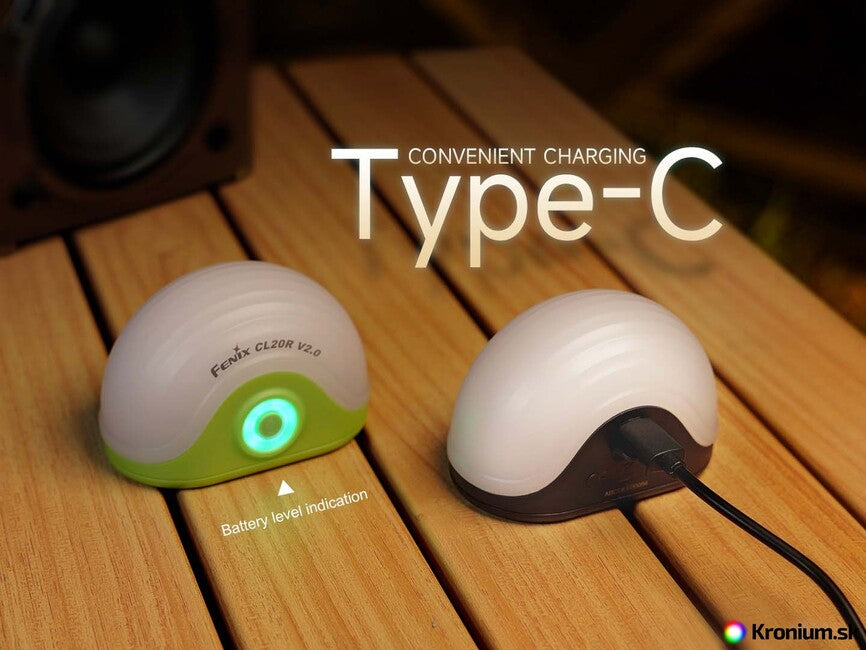

Charging - Flip open the dust cover and plug the USB-C charging cable into the charging port of the light. After charging is complete, seal the dust cover again. Normal charging time is 2.5 hours. During charging, the lantern can be used in all modes. During charging, the light ring of the switch gradually flashes green in a counter-clockwise direction. When fully charged, it lights up green. To extend battery life, we recommend charging the lantern when the charge level is between 50% and 25%. If the charge level drops below 25%, immediate charging is recommended. Do not connect the charging cable to the lantern if you are using AAA batteries.

Battery status indication - After each switch-on, or pressing the switch when the lantern is off, the battery status is displayed on the light ring of the switch for 3 seconds. If the ring lights up green, the battery is charged to more than 85%. Green flashing means 50-85% capacity. If it lights up red, it is charged to 25-50%. Red flashing indicates that less than 25% of the battery capacity remains. This function is only active with the original Fenix ARB-LP1900 battery.

Intelligent overheat protection - When the lantern is used for a long time at high power mode, a large amount of heat accumulates. When it reaches a temperature of 50 °C or higher, it automatically reduces the power by a few lumens to lower the temperature. When the temperature drops below 50 °C, the power gradually increases again.

Low battery warning - If the battery voltage drops below the set level, the ring around the switch will flash red to remind you that the battery needs to be recharged.

Warning

• Do not disassemble sealed parts yourself, as this will void the warranty.
• Remove the battery to prevent accidental activation if the lantern is placed in a closed and flammable environment, such as pockets and rucksacks.
• If the lantern is flashing, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
  • The rechargeable battery is discharged – charge it.

Warranty

Five-year warranty on the lantern, two-year warranty on the rechargeable battery.
