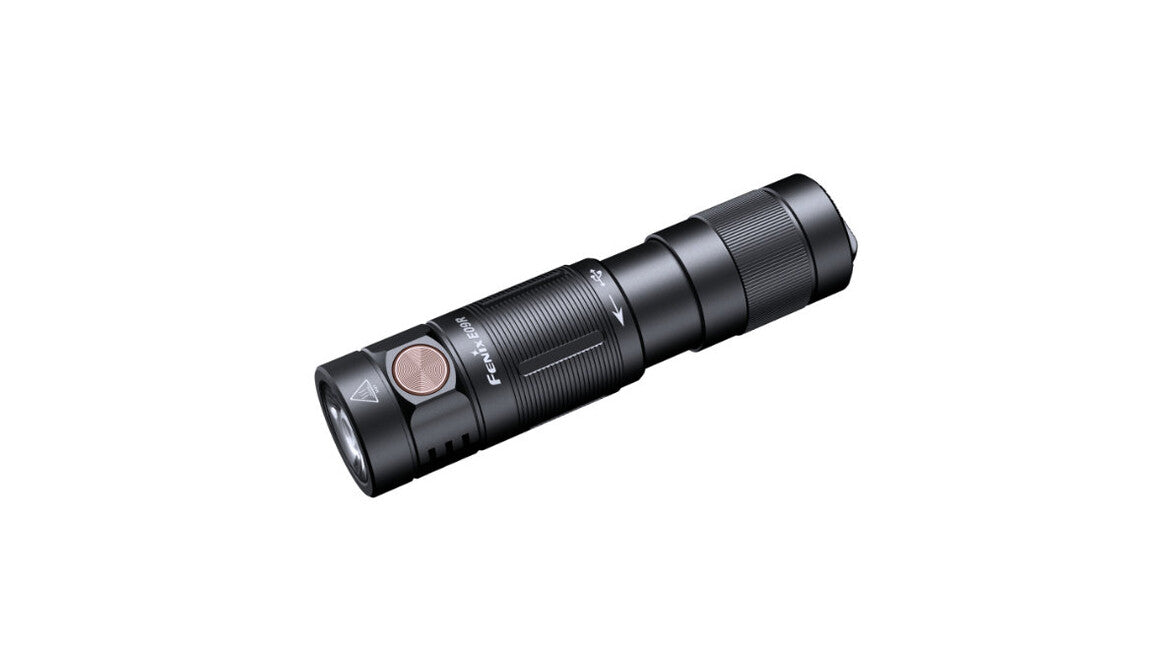

The rechargeable Fenix E09R torch offers high light output of up to 600 lumens (ANSI) in BURST mode despite its minimal dimensions and low weight of 45 grammes. The light source is a powerful Luminus SST20 LED, with which you can illuminate a distance of 124 metres. It features five light modes, with the lowest mode providing continuous operation for 70 hours. It is powered by a built-in Li-pol rechargeable battery with a capacity of 800 mAh, which charges via a modern USB-C connector directly in the torch. High quality construction, durability and waterproofing to IP68 standard are of course included. The torch is predestined by its properties to serve as a small yet powerful light tool for every day. Attached to keys, in a pocket, in a bag or rucksack, it certainly will not take up much space.

All torch parameters (light output, battery runtime, waterproofing, beam distance and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

Fenix E09R torch specifications

• Powerful Luminus SST-20 LED is used with a lifespan of 50,000 hours of operation.
• Five power modes: BURST 600 lumens (while button is held) → 300 lumens (1.5 hours) → 100 lumens (4 hours) → 25 lumens (16 hours) → 3 lumens (70 hours).
• Powered by a built-in Li-pol rechargeable battery with a capacity of 800 mAh.
• Charging via USB-C connector.
• Charging time for a fully discharged battery is approximately 1 hour.
• Overheat protection.
• The torch has memory and will always switch on in the last set mode (does not apply to BURST mode).
• Dimensions 7.9 cm (length) x 1.93 cm (head) x 1.84 cm (body).
• Weight 45 grammes.
• Light beam with a range of 124 metres (3970 cd).
• Made from aircraft-grade hardened aluminium.
• Durable surface - Type III hard anodized.
• Impact resistant to drops from a height of 1 metre.
• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 metres for 30 minutes).
• The package includes a metal key ring, a spare sealing O-ring, and a USB-C cable.

Use

• To switch the torch on or off, hold the button for 0.5 seconds.
• With further short presses, you cycle through the light modes 3 - 25 - 100 - 300 lumens.
• To activate BURST mode at 600 lumens, hold the button for more than 1.2 seconds.
• When you release the button, the torch switches to the lowest light mode.
• The control button can be locked to prevent accidental activation, for example when transporting in luggage.
• Press the control button twice quickly (within 0.5 seconds).
• The torch will flash twice in the lowest light mode, indicating it is locked.
• To unlock, press the button twice quickly again; the torch will flash twice again and is unlocked.
• Overheat protection - due to the torch's miniature dimensions and high power in the highest modes, the electronics automatically reduce brightness once the temperature reaches 60°C. Once the temperature drops, the highest modes can be activated again. The torch has memory and will always switch on in the last set mode (does not apply to BURST mode). Charging
  • Unscrew the waterproof nut that covers the USB-C connector. Then connect the charging USB-C cable to a computer USB port, USB adapter to mains power or to a car.
  • During charging, the indicator LED on the torch glows red; when fully charged, it glows green.
  • Standard full charging time is 1 hour.

• Warning Do not disassemble sealed parts yourself, as this will void the warranty. If the torch flashes or does not light up, it may be due to one of the following reasons:
  • The battery is discharged; charge it.

Warranty

Two-year warranty.
