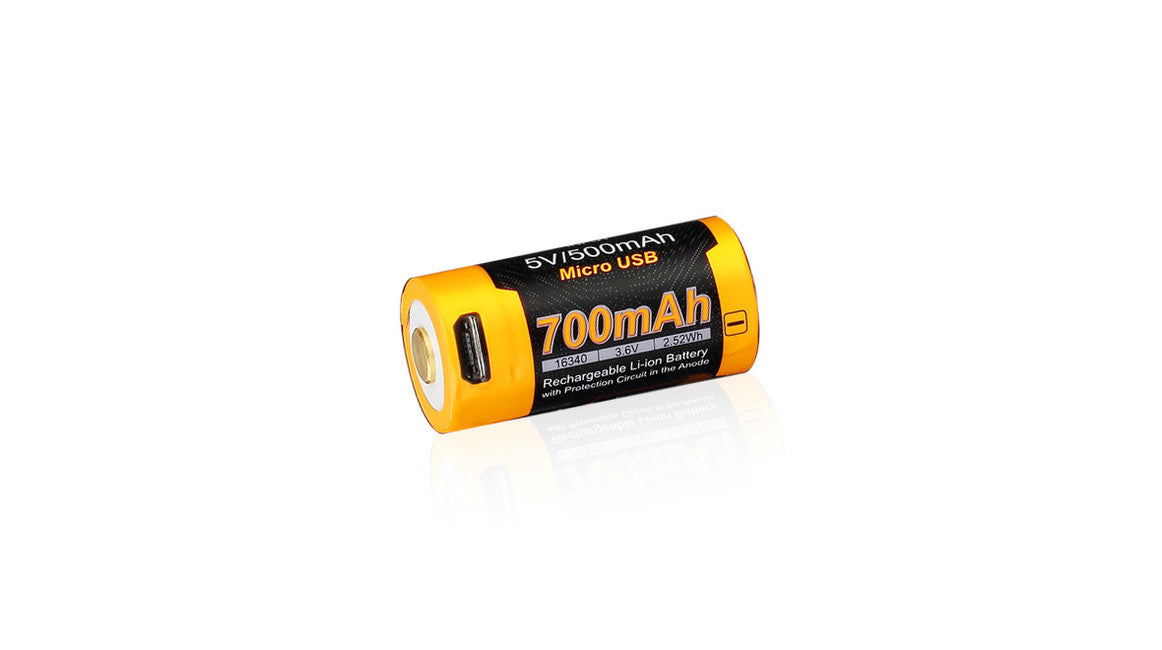

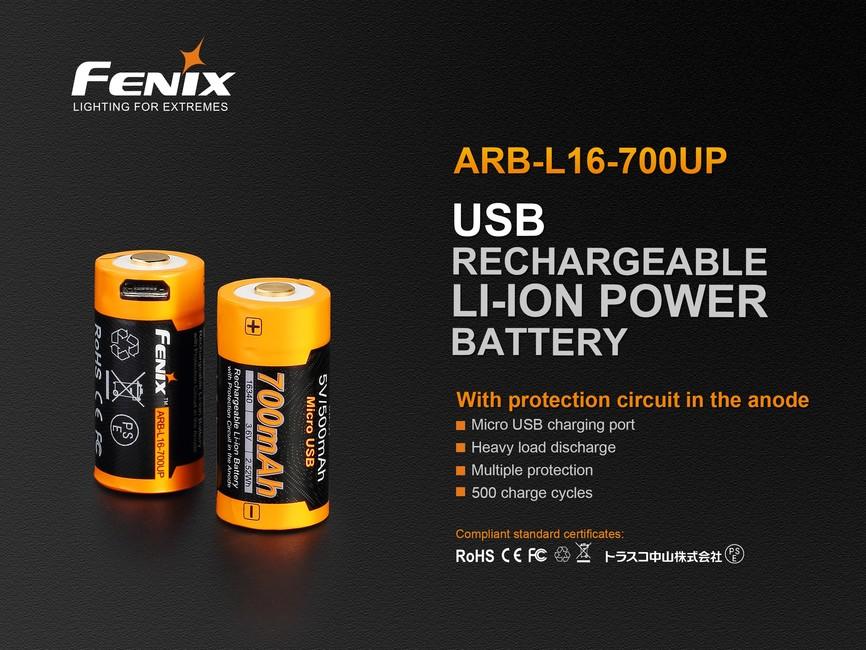

Fenix ARB-L16-700UP rechargeable battery (RCR123A, 16340) with built-in micro-USB charging connector. You can charge it by connecting a cable to the micro-USB connector (for example from a computer or mobile phone charger), as well as in a conventional charger. Compared to the ARB-L16-700U and ARB-L16-700 batteries, it is designed for higher discharge current (up to 2.5 A). It is therefore particularly suitable for devices with higher current consumption, for example Fenix E16 and Fenix E18R torches. Li-ion technology provides one of the best ratios of stored energy to cell weight. Batteries have no memory effect and self-discharge is minimal.

Battery protection can be divided into two areas. In the first, electronic circuits are added that prevent overcharging of the cell (a situation where conventional li-ion batteries risk explosion) or conversely excessive discharge (the battery would then not recharge). Additionally, these circuits protect the battery against short circuit or high current draw that could damage the battery. If the battery electronics detect that limit values have been reached, they disconnect the cell. The second area is then protection against overheating (PTC thermal protection) and a special anti-explosion valve. Unlike other valves used in li-ion batteries, this one, when the gas pressure in the cell exceeds a certain threshold, separates the electrodes inside the battery and thereby effectively interrupts the exothermic reaction and releases excess gas pressure outside the battery. Thanks to the combination of electronic and mechanical (thermal and pressure) protection, Fenix batteries are among the safest available li-ion batteries.

In size, the battery corresponds to the RCR123 disposable lithium CR123A battery, which is why it is often used in torches as a rechargeable alternative to these disposable cells. Check the first time whether your device supports this cell, as it has higher nominal voltage compared to the disposable battery. These batteries can also be used in torches such as Fenix E15 XP-G2, Fenix PD25, Fenix RC09, Fenix HM50R, Fenix HM51R, Fenix PD22 Ultimate Edition.
WARNING - do not use in Fenix E15 (does not apply to E15 XP-G2), PD10, PD12, PD20, PD22 (does not apply to Ultimate Edition) and HL50, risk of electronics damage! Due to the length of 35.5 mm, it may not fit in older torch models!

Battery specifications

• Nominal voltage: 3.6 V
• Capacity: 700 mAh

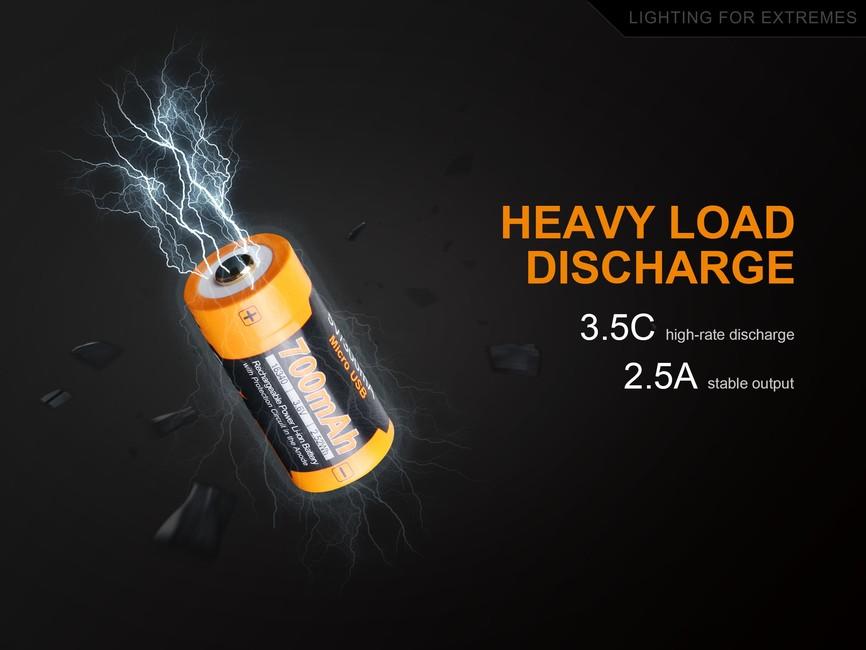

• Maximum discharge current: 3.5C (2.5 A)
• Maximum charging current: 1A, charging current of built-in micro-USB input: 0.3A.
• Protective electronics built into the positive pole ensures protection against overcharging, complete discharge and short circuit.
• Service life 500 charging cycles
• Diameter: 16 mm (+/- 0.2 mm)
• Height: 35.5 mm (+/- 0.2 mm)
• Weight: 18.8 grams.

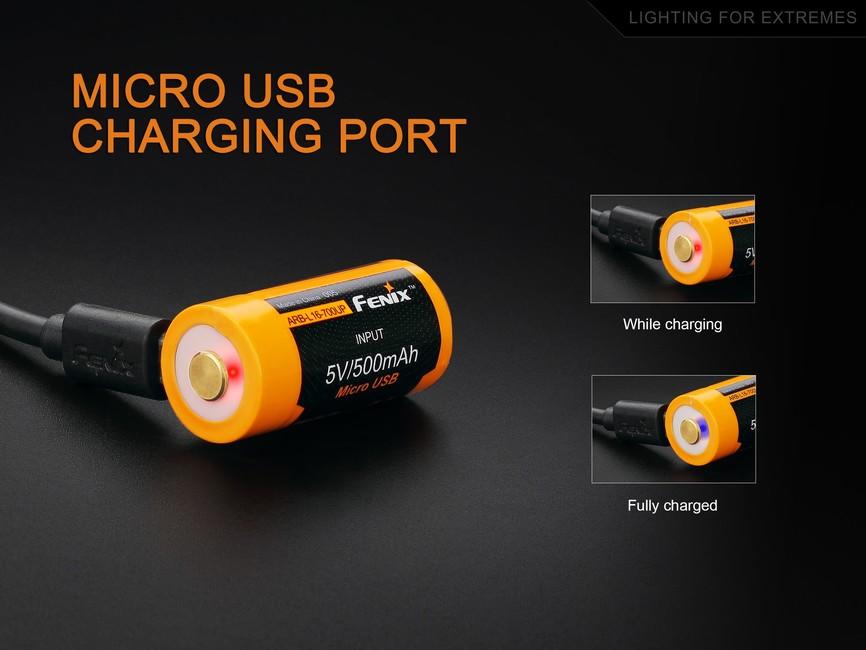

Charging via micro-USB connector
Connect the USB cable to the side micro-USB connector; during charging, the indicator light on the top of the battery glows red. When fully charged, it glows blue.
Recommended chargers
However, the battery can also be charged in conventional li-ion battery chargers: Fenix ARE-A2 charger Fenix ARE-X1+ USB charger Fenix ARE-X2 USB charger Fenix ARE-A4 charger Mini USB charger MC1 USB charger Lii-100 USB charger VC2 Soshine H2 charger with LCD Soshine H4 charger with LCD SkyRC MC3000 FKtechnics IPC-7 Lii-500 charger Warning If possible, do not discharge the battery below 3V Do not short circuit the battery (do not connect the cell terminals with a conductor) Do not throw the battery into fire Never insert the battery into the charger in reverse (with opposite polarity) When using the battery, follow safety guidelines Use only an appropriate charger that supports li-ion batteries Warranty Statutory two-year warranty.
