The functional and highly durable NUM'AXES TLK1022 walkie-talkie is a versatile transceiver (transmitter and receiver). It is ideal above all for professionals who need to stay in contact with their team on a construction site or at a trade fair, but also for leisure activities and hunting. The range is up to 12 km and the walkie-talkie runs on a rechargeable battery, which is included.

TLK1022 walkie-talkie features

• 16 channels: 8 PMR446 + 8 pre-programmed
• Very good range: 1 – 2 km in town, 4 – 6 km in forest, 12 km in the mountains
• Shock-resistant
• Scan (channel search) and Squelch (noise suppression) modes
• Battery saving mode
• Voice channel announcement
• Dual jack connector for accessories

Reliable and effective

• 2-year warranty
• Designed to withstand impacts
• Splash-proof

Technical specifications

• Frequency band: PMR446 MHz (UHF), compatible with most PMR446 walkie-talkies on the market
• Number of channels: 16 (8 PMR446 + 8 pre-programmed)
• Maximum range: 12 km
• Channel spacing: 12.5 kHz
• Operating voltage: 3.7 V DC
• Modulation limit: ±2.5 kHz / 12.5 kHz
• Audio distortion: < 5 %
• RF sensitivity: 0.2 μV (12 dB SINAD)
• Audio response: +1 / -3 dB
• Adjacent channel sensitivity: 60 dB / 12.5 kHz
• Operating temperature: -30 °C to +60 °C
• Storage temperature: -40 °C to +85 °C
• Display: no
• Vibration: no
• Jack connector: yes
• Water resistance: splash-proof
• Power supply: rechargeable 3.7 V Li-ion battery, 1 400 mAh
• Weight: 170 g (with battery)
• Dimensions without antenna: 60 × 35 × 117 mm
• Dimensions with antenna: 60 × 35 × 205 mm
• Sales unit: 1 pc

Tips for using the walkie-talkie

• Do not use the walkie-talkie in areas where the authorities prohibit it.
• Do not expose it to direct sunlight for long periods and do not store it near sources of heat.
• Do not store it in extremely dusty, damp or unstable places.
• If smoke or an unusual smell comes from the walkie-talkie, switch it off and remove the battery.

Charging and replacing the battery

• Do not charge a battery that is already fully charged – this may shorten its service life or damage it.
• If the battery temperature exceeds 60 °C, charging stops. Wait until the battery has cooled down and then charge it again.
• Do not short-circuit the battery contacts and do not dispose of the battery in fire or with household waste.
• Do not attempt to disassemble or open the battery.

Package contents

• 1 TLK1022 walkie-talkie

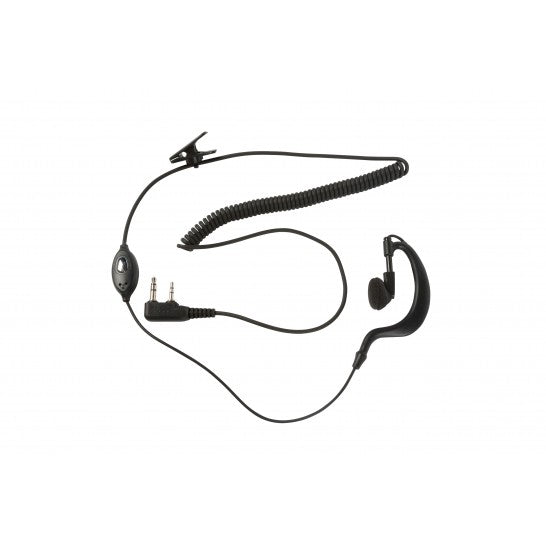

• 1 earpiece
• 1 belt clip
• 1 rechargeable battery

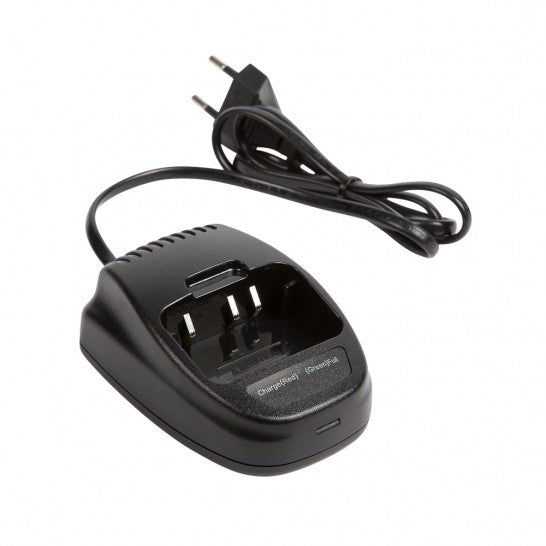

• 1 charger (charging stand + mains adapter)
• 1 user manual

You can download the product manual in your language here.
