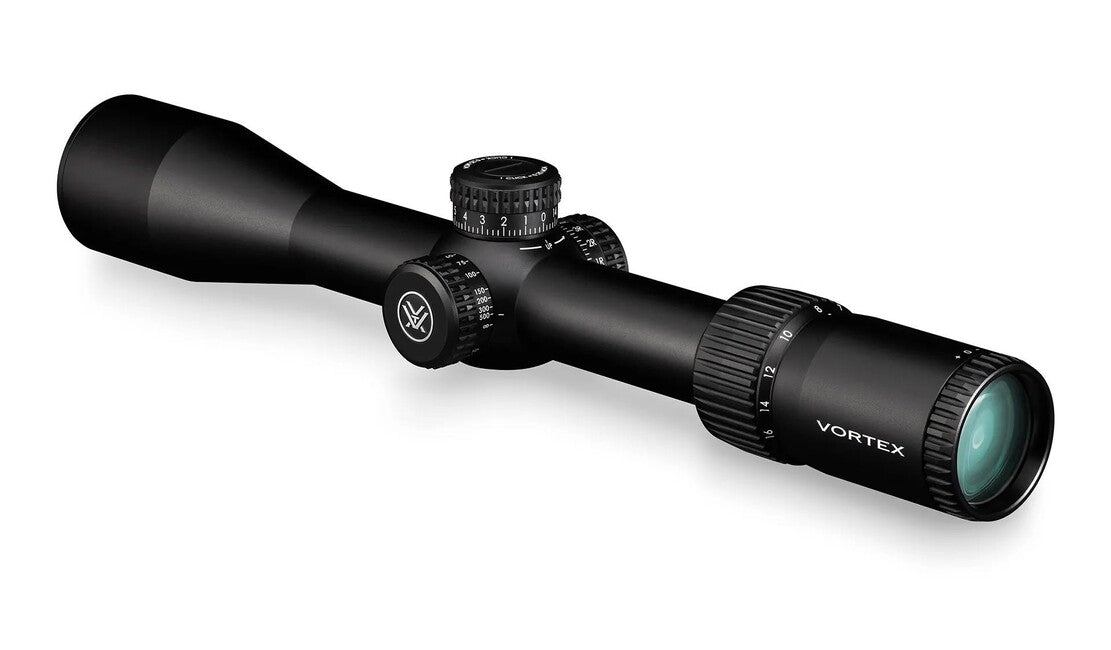

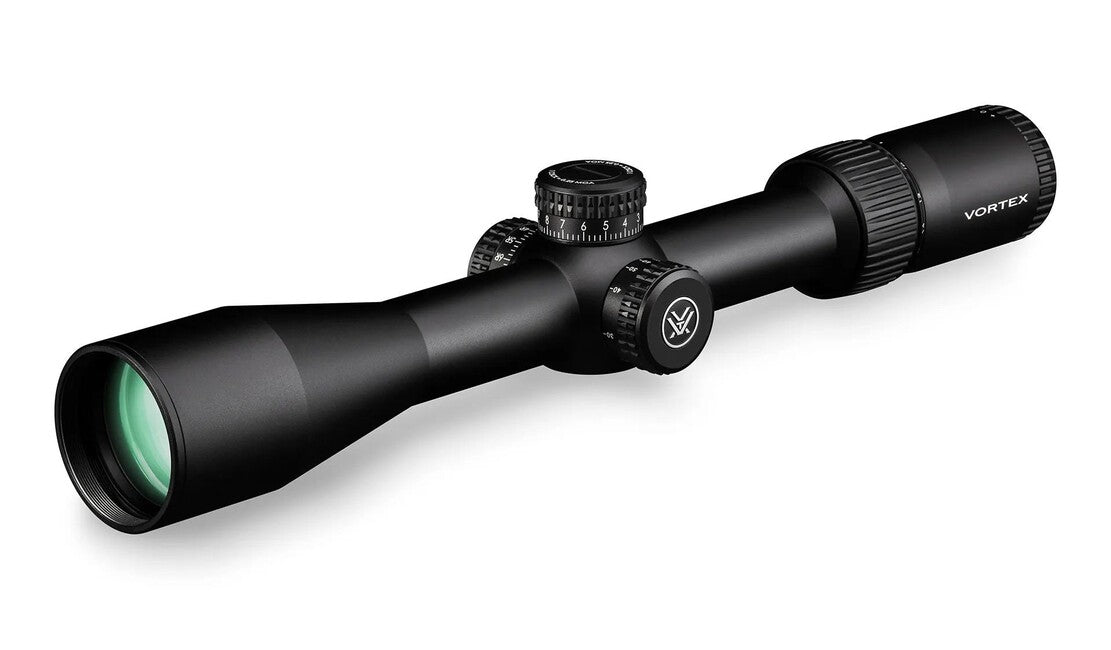

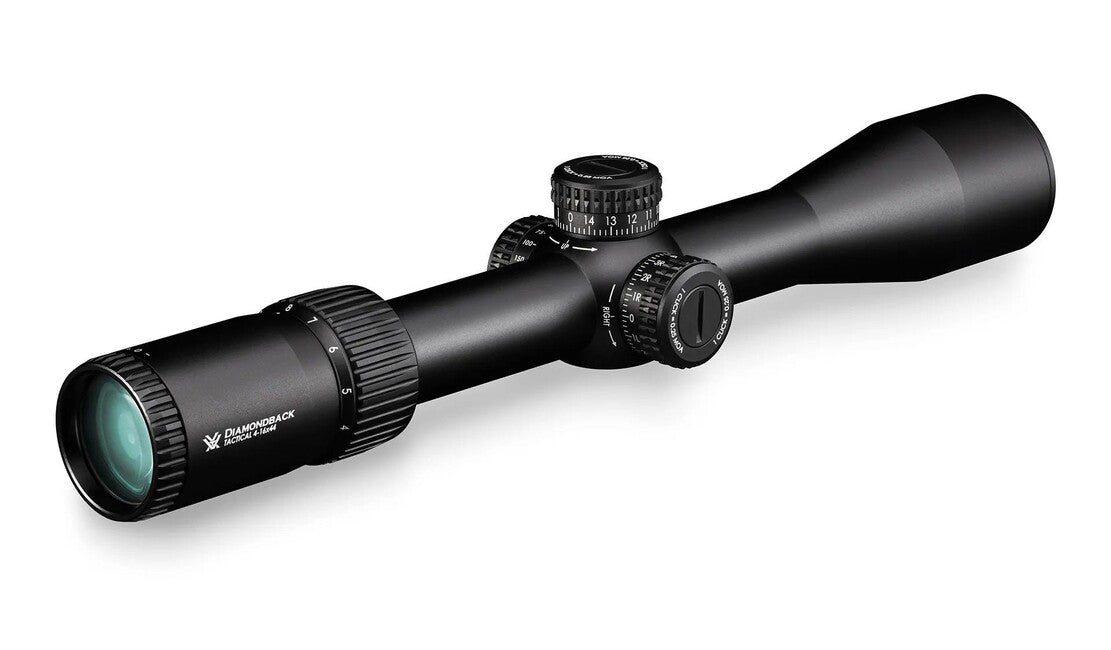

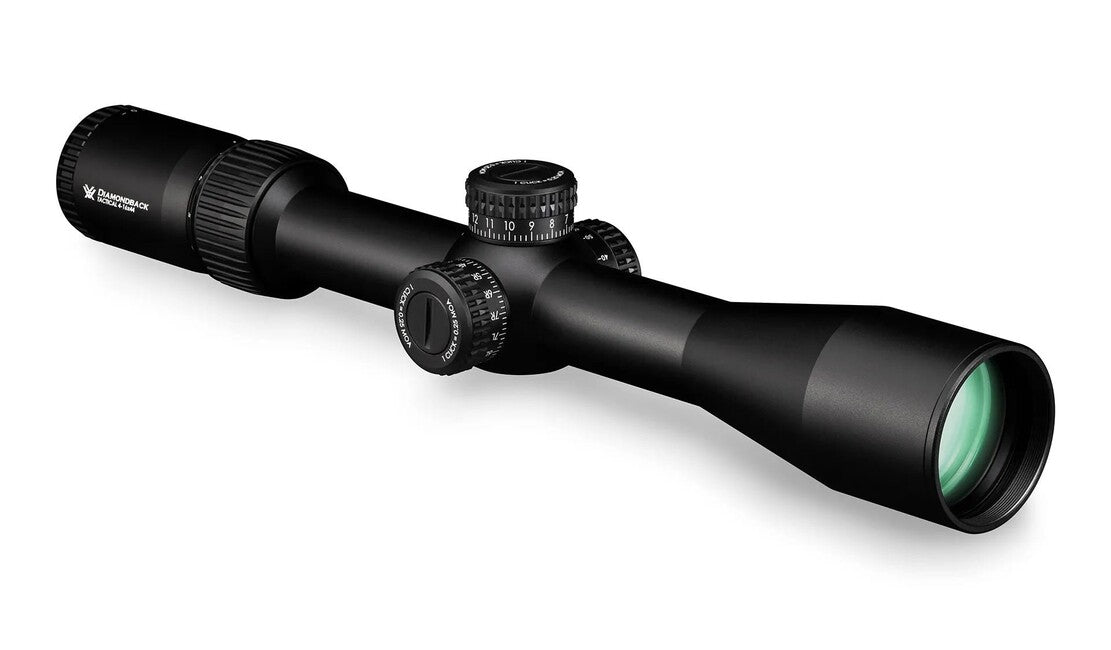

Diamondback Tactical is a long-term wolf in sheep's clothing. Rather than trying to cram features at the expense of turret performance and optical quality, Diamondback Tactical takes it back, focusing on what matters. Exposed turrets deliver tracking performance that has only been dreamed of in this price category until now, whilst its optical system delivers a sharp image even at long distances. Its relatively straightforward design puts you firmly in the driver's seat with the potential to reach the 1,000 yard mark and beyond, all at a price that is easily justified for new shooters, your training rifle scope, as well as experienced shooters looking for a basic optical instrument on their recreational rifle. Choose one of the first focal plane models on a sweet-shooting rifle and you have a perfectly capable competition setup without breaking the bank.

Diamondback Tactical 4-16x44 FFP Dimensions (in millimetres)

Lengths
L1	L2	L3	L4	L5	L6
357.56	56.896	68.58	163.322	97.282	95.758

Heights
H1	H2
51.054	43.942

Specifications:

Magnification	4-16x
Objective lens diameter	44 mm
Focal plane	First focal plane
Reticle	EBR-2C (MRAD)
Turret style	High exposed tactical
Tube size	30 mm
Adjustment graduation	.1 MRAD
Parallax adjustment	20 yards to infinity
Max. wind adjustment	25 MRAD
Max. elevation adjustment	25 MRAD
Travel per revolution	6 MRAD
Field of view	26.9-6.7 ft/100 yd
Eye relief	96.52 mm
Length	357.56 mm
Weight	23.1 oz

Features:

Aluminium class	Aerospace
Multi-coated lens	Fully multi-coated
HD lens elements	XD™
Shock resistance	Solid construction withstands recoil and impact.

Reticle:

EBR-2C (MRAD)

Hash-marked reticle using MRAD-based subtension lines for range measurement, elevation correction and wind. Letters refer to subtension data shown in the table below.

INCLUDED IN PACKAGING

• Objective lens caps
• Lens cleaning cloth
• Sunshade

Vortex Optics products are covered by a lifetime warranty.
